Generate Ellipse Path

Generate Ellipse Path

Usage

generate_ellipse_path(x0 = 0, y0 = 0, a = 2, b = 1, angle = 0, density = 200)

Arguments

x0

The coordinate x of the polygon center point (default: 0).

y0

The coordinate y of the polygon center point (default: 0).

a

Long arm (default: 2).

b

Short arm (default: 1).

angle

Rotation angle in degree (default: 0).

density

Greater amount of points yield smoother ellipse (default: 200).

Value

A data.frame with the point coordinates (x, y) to construct the polygon

Examples

library(ggplot2)

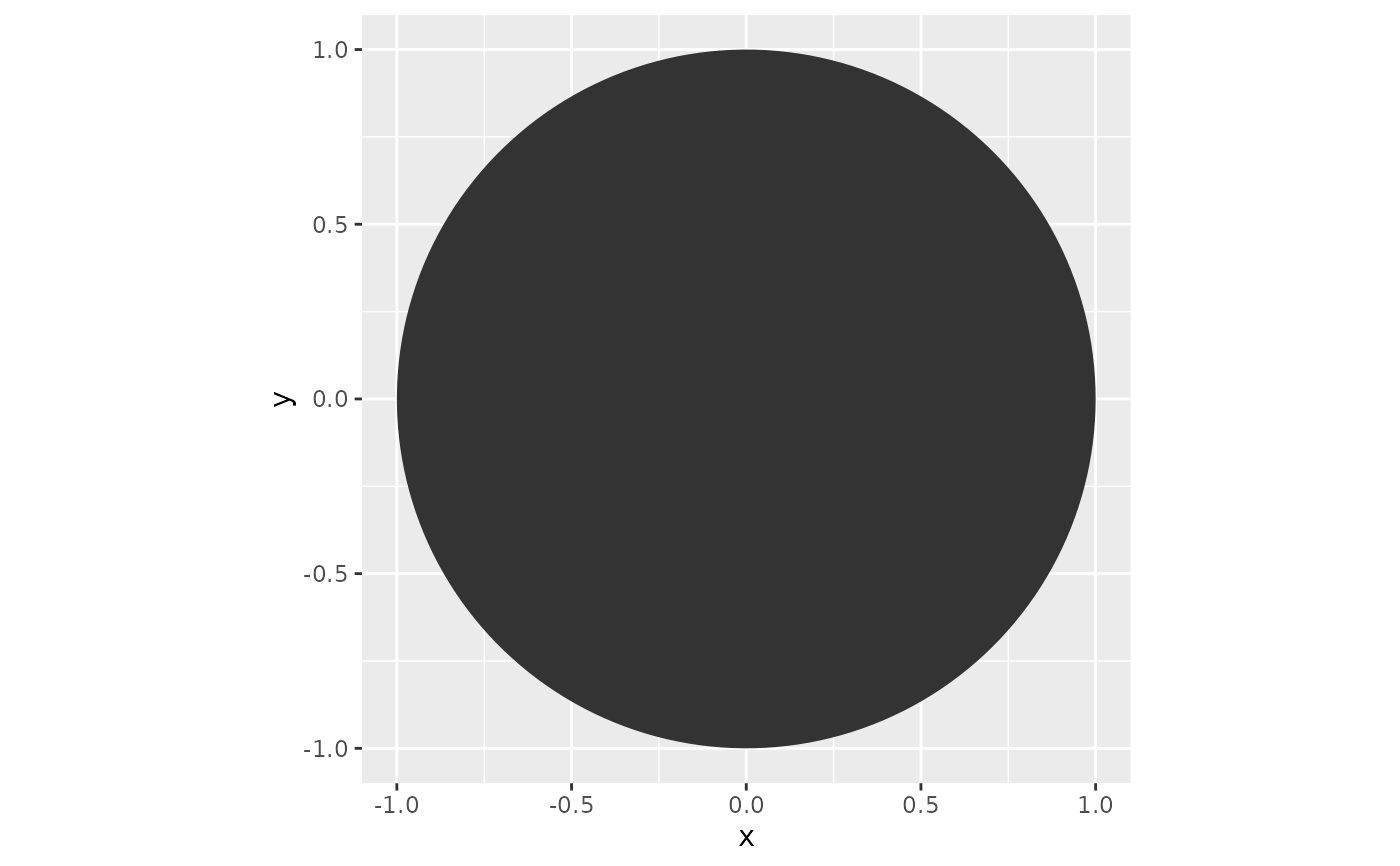

# Draw a circle
circle <- generate_ellipse_path(a = 1, b = 1)
ggplot(circle, aes(x, y)) +
    geom_polygon() +
    coord_fixed()

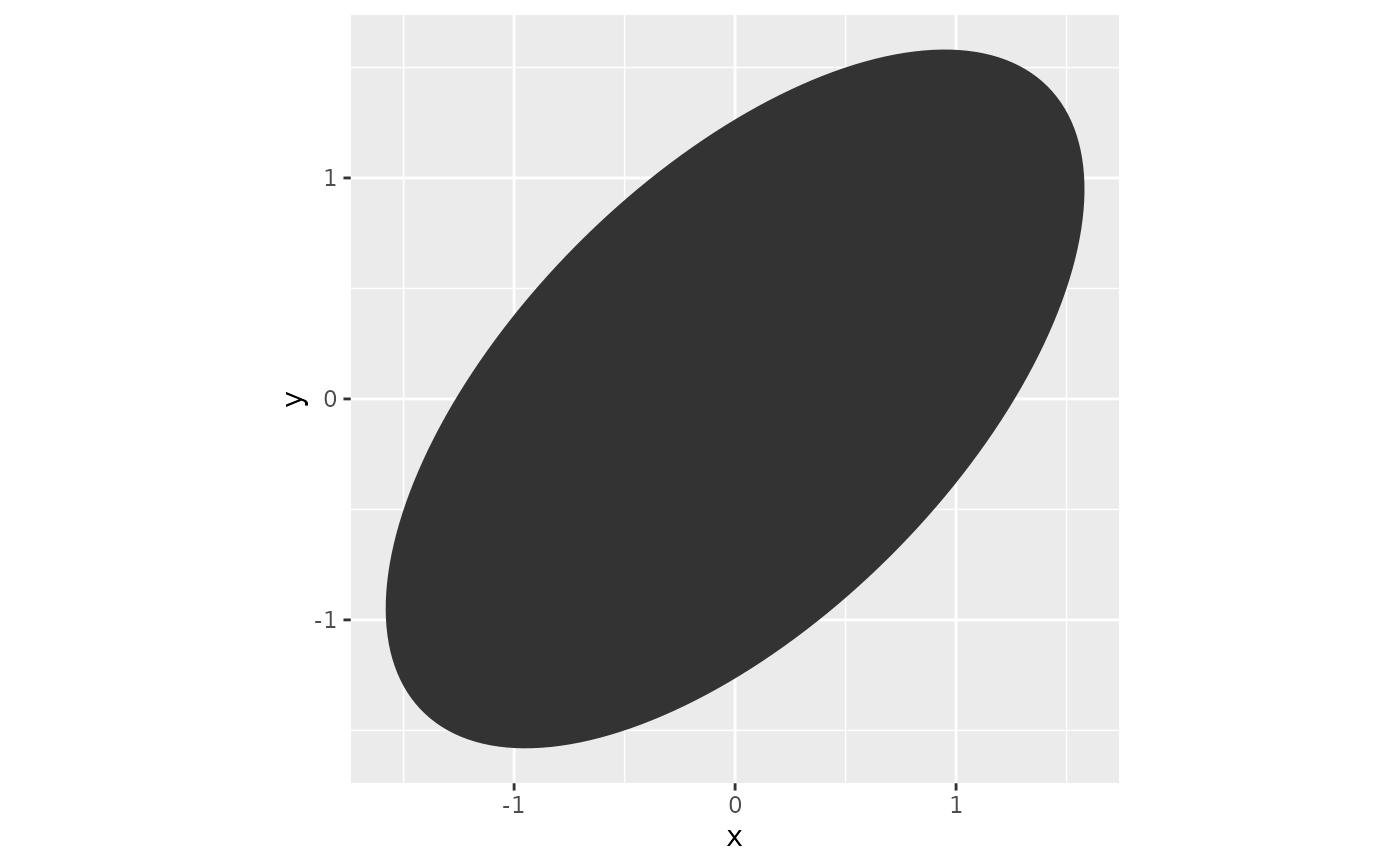

# Draw an ellipse
ellipse <- generate_ellipse_path(a = 2, b = 1, angle = 45)
ggplot(ellipse, aes(x, y)) +
    geom_polygon() +
    coord_fixed()
